(Continued from previous page)

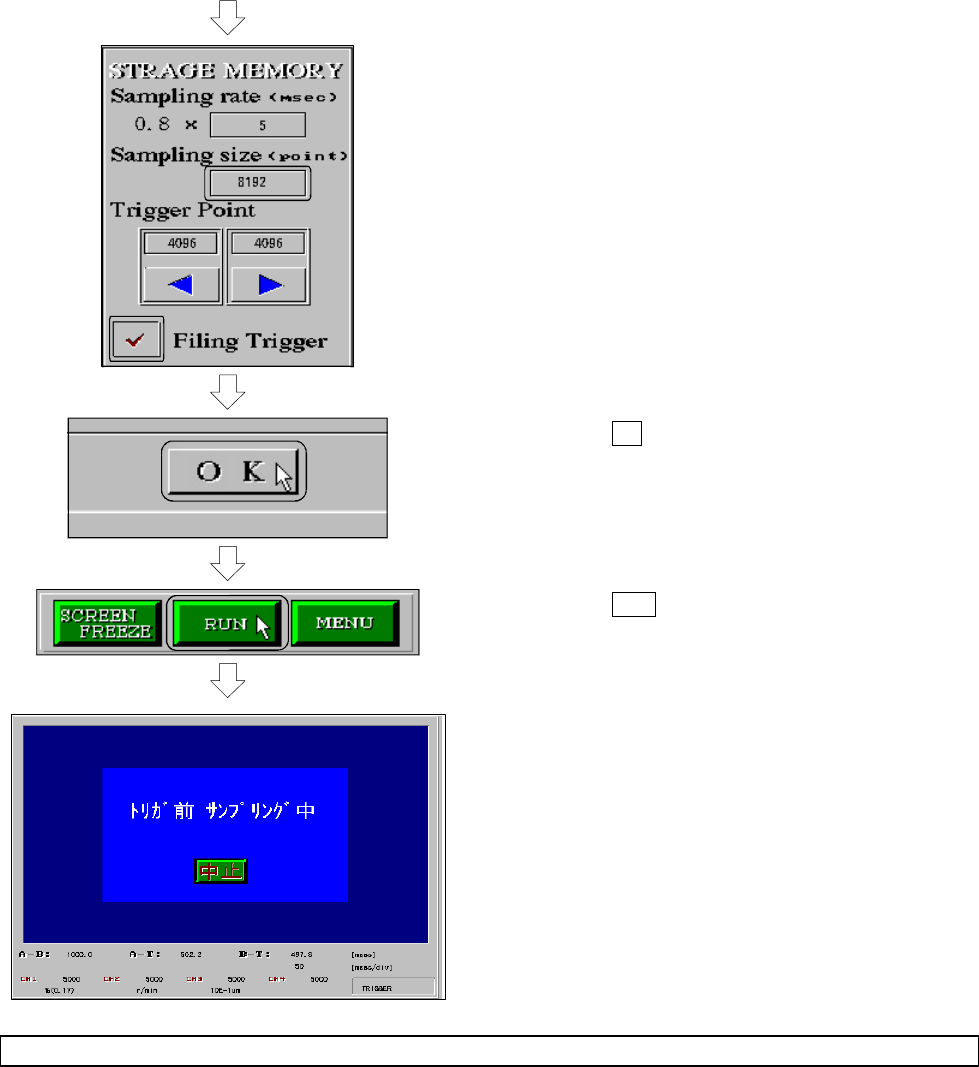

10) Set the sampling size to 8,192 times.
Set "Sampling size (point)" to '8192' in the same
manner as steps 8) to 10), and the check "Filing
Trigger".
11) Click on the OK button.
12) Click on the RUN button.
The trace monitor will be executed.
13) The trigger waiting status will occur, causing
"Sampling before trigger" to appear at the display
area MAP.
14) Turn ON X2 of the practice machine.
