(Continued from previous page)

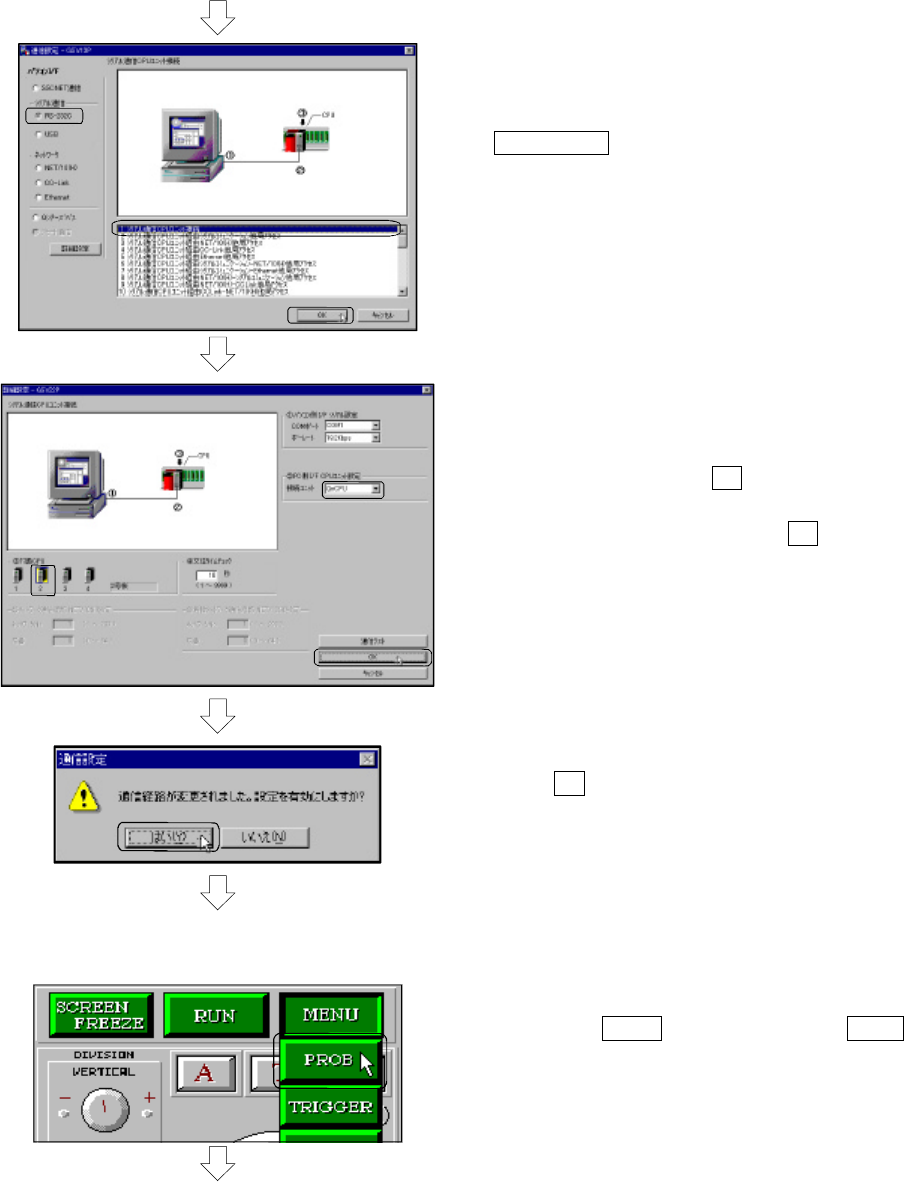

5) The COMMUNICATION SETTING dialog box will
open, so check "RS-232C", select "1. Serial
communication CPU connection" and click on the
Detail setting button.
6) The DETAIL SETTING dialog box will open, so set
"PC side I/F CPU setting" to 'QnCPU', and "Object
CPU" to '#2 machine'.
After setting, click on the OK button.
Since the communication setting dialog box is
resumed in this case, click on the OK button.
7) When the message shown at left is displayed, click
on the OK button.
(2) Waveform measurement
1) Select the item to trace.
Click on the MENU button, and then the PROB
button.
(Continued on next page)
